What is a characteristic of legacy inter-VLAN routing? Only one VLAN can be used in the topology. The router requires one Ethernet link for each VLAN.* The user VLAN must be the same ID number as the management VLAN. Inter-VLAN routing must be performed on a switch instead of a router.
Also to know is, what is traditional inter-VLAN routing?
Definition. Inter-VLAN routing can be defined as a way to forward traffic between different VLAN by implementing a router in the network. The user nodes in the VLANs forwards traffic to the router which then forwards the traffic to the destination network regardless of the VLAN configured on the switch.

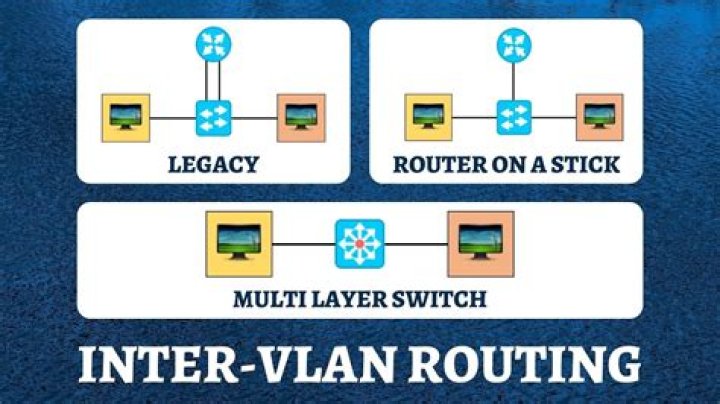

Also, what are the 3 different types of inter-VLAN routing methods? Inter-VLAN routing methods
- Legacy inter-VLAN routing.
- Router-on-a-stick.
- Layer 3 switch using Switched Virtual Interface (SVI)
- For us to subdivide the network into two subnets, we have to create two VLANS on the switch, VLAN10 and VLAN20 .
- Assign switch ports to the VLANS.
- Configurations for access ports fa0/1 and fa0/2.
Beside above, what are the three primary benefits of using VLANs?
VLANs provide a number of advantages, such as ease of administration, confinement of broadcast domains, reduced broadcast traffic, and enforcement of security policies. VLANs provide the following advantages: VLANs enable logical grouping of end-stations that are physically dispersed on a network.
What are two characteristics of voice traffic?
Most QoS issues can be broken into an analysis of the four QoS characteristics: bandwidth, delay, jitter, and loss. The basics of voice over data networks is covered first, followed by QoS details unique to voice in terms of the four QoS characteristics.
Related Question Answers
What is a characteristic of a routed port on a Layer 3 switch?
Answers Explanation & Hints:A routed port on a Layer 3 switch is commonly used for connecting between distribution and core layer switches or between a Layer 3 switch and a router. This port does not get VLAN or trunking commands assigned to it. Instead, the port is programmed with an IP address.
Which characteristic describes the native VLAN?
The native VLAN provides a common identifier to both ends of a trunk. The native VLAN provides a common identifier to both ends of a trunk. The native VLAN provides a common identifier to both ends of a trunk.What are two functions of a router?
What are two functions of a router? (Choose two.)- It controls the flow of data via the use of Layer 2 addresses.
- It provides segmentation at Layer 2.
- A router connects multiple IP networks.
- It determines the best path to send packets.
- It builds a routing table based on ARP requests.
What are two advantages of static routing over dynamic routing?
Static routing requires very little knowledge of the network for correct implementation. Static routing uses fewer router resources than dynamic routing. Static routing is relatively easy to configure for large networks. Static routing is more secure because it does not advertise over the network.What are the drawbacks of using router on stick inter-VLAN routing?
The disadvantages to a Router on a Stick Network are:- It is more complex to set up compared to other networks.
- Traffic between VLANs goes into the router and out of the router through the same port.
- The trunk is a major source of congestion.
What are the advantages of inter-VLAN routing?
4 Answers- If you've got inter-VLAN routing, there's a single point - the router - where you can control the traffic.
- Splitting your network in e.g. client and server subnets allows you to very conveniently apply different security policies to each subnet (zone), e.g. on the firewall.
What are the advantages of inter-VLAN routing using Layer 3 switches?
Specifically, it provides Layer 3 processing for packets that are sent to or from all switch ports associated with that VLAN. The following are advantages of using Layer 3 switches for inter-VLAN routing: They are much faster than router-on-a-stick because everything is hardware switched and routed.What do you know about routing?
Routing is the process of selecting a path for traffic in a network or between or across multiple networks. Packet forwarding is the transit of network packets from one network interface to another. Intermediate nodes are typically network hardware devices such as routers, gateways, firewalls, or switches.How does the router on a stick model for inter-VLAN routing differ from traditional routing?
How does the router-on-a-stick model for inter-VLAN routing differ from traditional routing? The router-on-a-stick model uses subinterfaces on the router with only the no shutdown command issued on the physical interface.How do you configure traditional inter-VLAN?
- Step 1: Create VLANs (VLANs 10 and 20) on the switch. Description. Command. Enter global configuration mode. Switch# conf t.
- Step 2: Assign the VLANs to switch port. Description. Command. Enter global configuration mode.
- Step 3: Configure the IP addresses on the router. Description. Command. Enter global configuration mode.
What is difference between layer 2 or layer 3 switch?
The layer 2 and Layer 3 differs mainly in the routing function. A Layer 2 switch works with MAC addresses only and does not care about IP address or any items of higher layers. Layer 3 switch, or multilayer switch, can do all the job of a layer 2 switch and additional static routing and dynamic routing as well.What is inter-VLAN routing Mcq?
Q. What is Inter-VLAN Routing? The process of forwarding network traffic from one VLAN to another VLAN using routing. Subnetting networks to support users.What are two primary benefits of using VLANs choose two?
The primary benefits of using VLANs are as follows: security, cost reduction, higher performance, broadcast storm mitigation, improved IT staff efficiency, and simpler project and application management.What is a function of a router?
A router receives and sends data on computer networks. Routers are sometimes confused with network hubs, modems, or network switches. However, routers can combine the functions of these components, and connect with these devices, to improve Internet access or help create business networks.Which type of VLAN is used to designate which traffic?
Which type of VLAN is used to designate which traffic is untagged when crossing a trunk port? Answers Explanation & Hints: A native VLAN is the VLAN that does not receive a VLAN tag in the IEEE 802.1Q frame header.What type of VLAN is used to separate the network into groups of users or devices?
A data VLAN, is sometimes referred to as a user VLAN. Data VLANs are used to separate the network into groups of users or devices.What is the purpose of the VLAN DAT file on a switch?
What is the purpose of the vlan. dat file on a switch? It holds the VLAN database. Refer to the exhibit.What are the four steps required to configure a voice VLAN on a switch port choose four options?
37. Which four steps are needed to configure a voice VLAN on a switch port? (Choose four).- Assign the voice VLAN to the switch port.*
- Ensure that voice traffic is trusted and tagged with a CoS priority value.*
- Add a voice VLAN.*
- Configure the switch port in access mode.*
What is the default native VLAN?
Default VLAN is VLAN 1 which cannot be shut down in any case and also it carries controlling traffic. In the case of Cisco (and most vendors), the Default Native VLAN is VLAN 1.What must the network administrator do to remove VLAN 2 and create VLAN 3?
What must the network administrator do to remove Fast Ethernet port fa0/1 from VLAN 2 and assign it to VLAN 3?- Enter the no vlan 2 and the vlan 3 commands in global configuration mode.
- Enter the switchport access vlan 3 command in interface configuration mode.
